EMC requirements: ensuring compliance and reliable operation across all industries
Electrical and electronic systems need to operate reliably within increasingly complex electromagnetic environments. Achieving electromagnetic compatibility (EMC) is not only a regulatory requirement, but also a critical factor in ensuring safety, optimising performance, and accelerating time-to-service.
RINA provides comprehensive EMC consultancy services to support a wide range of stakeholders, including system integrators, Front-End Engineering Design (FEED) and Engineering, Procurement, and Construction (EPC) contractors, government agencies and asset owners. Our expertise covers EMC compliance for large-scale facilities and complex installations across multiple sectors, including infrastructure, oil and gas, power generation, aerospace (aircraft and helicopters), transportation, and marine vessels.
We cater for the entire project lifecycle, from early design through to final verification, ensuring a structured and consolidated approach aligned with applicable international standards. We help clients meet both contractual and legal EMC requirements, facilitating the reliable and compliant operation of their platforms and facilities.
- Complete EMC system validation documentation, including technical files, control plans and test plans.
- EMC strategy definition, management, design support and consultancy services.
- EMC hazard identification (HazID) and analysis, including the management of EMC risk logs.
- EMC evaluation for functional safety, including EMC qualification and validation activities.
- Support for Electromagnetic Environment Effects (E3) protection and mitigation measures.
- EM site surveys and characterisation of electromagnetic environments.
- Lightning risk assessment and protection, power quality assessment, and earthing system design.
- Radiation hazard assessment and evaluation of human exposure to electromagnetic fields (EMF)
- Assessment of inadvertent ignition of flammable atmospheres and electro‑explosive devices (EEDs) caused by radio frequency (RF) emissions.
- Induced and touch voltage assessments.
- Management of EMC equipment compliance testing programmes.
- Power‑frequency magnetic field computational simulation.
- NATO‑recognised electromagnetic security assessment, from design through to testing (Emission Security – EMSEC – and TEMPEST).

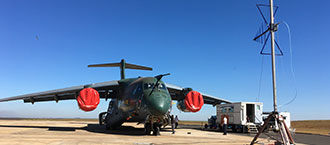

- Aircraft high‑intensity radiated fields (HIRF) testing, including low‑level swept coupling (LLSC), low‑level swept field (LLSF), portable electronic device (PED) and transmitting portable electronic device (TPED) testing.
Electromagnetic Compatibility (EMC) is the ability of a piece of equipment or system to operate satisfactorily in its electromagnetic environment without introducing intolerable electromagnetic disturbances to other systems, and without being adversely affected by other systems operating in the same environment.
EMC is not limited to system-to-system interactions. It also covers other aspects, such as Electromagnetic Environment Effects (E3), primarily in military applications, including Human Exposure to Electromagnetic Fields (HERP), Hazards of Electromagnetic Radiation to Fuel (HERF), hazards related to Electro‑Explosive Devices (EEDs), and Hazards of Electromagnetic Radiation to Ordnance (HERO), thereby ensuring a safe operating environment.
The most effective way to address EMC issues is to prevent them from the outset. As with all engineering practices applied to complex systems, this requires a systems engineering approach.
This process starts with a clear definition of requirements, followed by their implementation and verification through a well‑defined and rigorous lifecycle, in accordance with applicable international standards.
The regulatory landscape for electromagnetic compliance is divided into distinct frameworks for civil and military applications.
In the European civil sector, the EMC Directive 2014/30/EU is the primary regulation governing electromagnetic compatibility in its strictest sense. However, other directives also address electromagnetic aspects. The Low Voltage Directive (LVD) 2014/35/EU covers human exposure to electromagnetic fields and general electrical safety, while the Machinery Directive 2006/42/EC and the EU Regulation 2023/1230 on machinery, addresses overall safety and functional safety, ensuring that electromagnetic disturbances do not result in hazardous malfunctions.
In the military sector, the regulatory approach differs, as each nation maintains its own specific requirements. Key international reference standards include MIL‑STD‑461 (requirements for equipment and subsystems) and MIL‑STD‑464 (requirements for integrated platforms) from the United States, as well as the UK DEF STAN 59‑411, which provides a comprehensive framework for both equipment and platforms within the British defence context. NATO standards are also relevant, covering all aspects of Electromagnetic Environment Effects (E3).
While civil regulations focus on market harmonisation and general safety, military standards emphasise mission readiness and survivability in extreme electromagnetic environments.
There is no “latest” EMC standard. EMC standards are developed and modified continuously by the international organisations (e.g. the IEC).
Compliance with EMC Directive 2014/30/EU follows two distinct paths, depending on whether the subject is an apparatus (product) or a fixed installation.
For apparatus, compliance is based on the presumption of conformity. The manufacturer must demonstrate that the product meets the essential requirements, typically by testing it against harmonised international standards published by the EU. This process culminates in the preparation of a Technical File, the issuance of an EU Declaration of Conformity, and the application of the mandatory CE marking.
For fixed installations, such as large industrial plants, the principles of protection remain the same, but CE marking is not required for the installation as a whole. Instead, compliance is achieved by applying and documenting good engineering practices during design and assembly, ensuring that all incorporated components are compliant and correctly integrated.
Not necessarily. While testing is the most direct way to demonstrate compliance, it is not the only available method. The appropriate approach depends on the complexity of the system and the specific project requirements.
In many cases, alternative methods can be used to verify compliance, including:
- Theoretical analysis: applying established physical principles to assess system performance.
- Analytical calculations: using simple, conservative calculations to estimate safety margins, commonly applied to Human Exposure to Electromagnetic Fields (HERP) or Hazards of Electromagnetic Radiation to Fuel (HERF) distances.
- Computer simulations: employing advanced 3D electromagnetic software to predict system behaviour in complex environments.
These alternatives are typically used when physical testing is technically impractical, prohibitively expensive, or when a similarity analysis with a previously tested system can be justified. The selected verification method must be evaluated on a case‑by‑case basis and formally agreed upon in the Electromagnetic Environment Effects (E3) Verification Plan.
